Integrate kerberos into a hadoop cluster

In this tutorial, we will show how to integrate kerberos into a hadoop cluster. The goal is to use the kerberos tickets to authenticate users, hosts(e.g. namenode, datanode, resourceManager, etc.) and services(e.g. hdfs, yarn).

We have different strategy for different kinds of users. For service account, we will generate .keytab files to generate kerberos tickets automatically. For user account, a password maybe required to generate the ticket.

1. Prerequisite

Before we start, we need to clarify the hadoop cluster context. Because the AD/Ldap account and kerberos principal naming conventions strongly depends on the cluster architecture.

Suppose we have three servers, in each server we run different services:

  • spark-m01.casdds.casd: name-node(hdfs), resource-manager(yarn), history-server(spark)
  • spark-m02.casdds.casd: data-node(hdfs), node-manager(yarn)
  • spark-m03.casdds.casd: data-node(hdfs), node-manager(yarn)

We suppose you already join these machines into the AD/krb realm. For more details, you can check this doc. We also provide a version in French here

1.1 Prepare service account and their keytab

By convention, we recommend you to create a dedicated AD/Ldap account and kerberos principal for each service. This ensures secure authentication and proper ticket management. It's also easier to monitor access and avoid unexpected situations. Technically, an AD/Ldap account can be associated with one or more kerberos principals.

Below is a list of all AD/Ldap accounts and kerberos principal you need to create:

Service Hadoop Role Host Kerberos Principal AD account name
HDFS NameNode spark-m01.casdds.casd nn/spark-m01.casdds.casd@CASDDS.CASD hdfs-nn
HDFS DataNode spark-m02.casdds.casd dn/spark-m02.casdds.casd@CASDDS.CASD hdfs-dn1
HDFS DataNode spark-m03.casdds.casd dn/spark-m03.casdds.casd@CASDDS.CASD hdfs-dn2
HDFS HTTP Service spark-m01.casdds.casd http/spark-m01.casdds.casd@CASDDS.CASD http-nn
HDFS HTTP Service spark-m02.casdds.casd http/spark-m02.casdds.casd@CASDDS.CASD http-dn1
HDFS HTTP Service spark-m03.casdds.casd http/spark-m03.casdds.casd@CASDDS.CASD http-dn2
YARN ResourceManager spark-m01.casdds.casd rm/spark-m01.casdds.casd@CASDDS.CASD yarn-rn
YARN NodeManager spark-m02.casdds.casd nm/spark-m02.casdds.casd@CASDDS.CASD yarn-nm1
YARN NodeManager spark-m03.casdds.casd nm/spark-m03.casdds.casd@CASDDS.CASD yarn-nm2
Spark History Server spark-m01.casdds.casd jhs/spark-m01.casdds.casd@CASDDS.CASD spark-jhs
HOST None spark-m01.casdds.casd host/spark-m01.casdds.casd@CASDDS.CASD spark-m01
HOST None spark-m02.casdds.casd host/spark-m02.casdds.casd@CASDDS.CASD spark-m02
HOST None spark-m03.casdds.casd host/spark-m03.casdds.casd@CASDDS.CASD spark-m03

The AD account name cannot contain special character such as @ and ., so we can't use the principal name as AD account name.

You can create an AD account in windows with the below command

# create AD account and kerberos principal
New-ADUser -Name "hdfs-nn" -SamAccountName "hdfs-nn" -UserPrincipalName "nn/spark-m01.casdds.casd@CASDDS.CASD" -Enabled $true -PasswordNeverExpires $true -CannotChangePassword $true -ChangePasswordAtLogon $false -PassThru | Set-ADAccountControl -PasswordNotRequired $true

# create corresponding keytab
ktpass -princ nn/spark-m01.casdds.casd@CASDDS.CASD -mapuser hdfs-nn -crypto ALL -ptype KRB5_NT_PRINCIPAL -pass Password! -out hdfs-nn.keytab

After you generate the required keytab files for all principals, you need to copy them to the target server. For example, for server spark-m01.casdds.casd@CASDDS.CASD, you need to copy the keytab file for principals:

  • nn/spark-m01.casdds.casd@CASDDS.CASD
  • HTTP/spark-m01.casdds.casd@CASDDS.CASD
  • rm/spark-m01.casdds.casd@CASDDS.CASD
  • jhs/spark-m01.casdds.casd@CASDDS.CASD
  • host/spark-m01.casdds.casd@CASDDS.CASD

The general rule is straightforward, you need to check the host fqdn name in the principals

You can test the validity of the keytab file by asking a kerberos ticket. Below command is an example

kinit -kt /etc/hdfs-nn.keytab nn/spark-m01.casdds.casd@CASDDS.CASD

To show the details of a keytab file, you can use the below command:

klist -e -k -t /etc/yarn.keytab

# expected output
Keytab name: FILE: /etc/yarn.keytab
 KVNO Timestamp         Principal
   4 07/18/11 21:08:09 yarn/spark-m02.casdds.casd (AES-256 CTS mode with 96-bit SHA-1 HMAC)
   4 07/18/11 21:08:09 yarn/spark-m02.casdds.casd (AES-128 CTS mode with 96-bit SHA-1 HMAC)
   4 07/18/11 21:08:09 yarn/spark-m02.casdds.casd (ArcFour with HMAC/md5)
   4 07/18/11 21:08:09 host/spark-m02.casdds.casd (AES-256 CTS mode with 96-bit SHA-1 HMAC)
   4 07/18/11 21:08:09 host/spark-m02.casdds.casd (AES-128 CTS mode with 96-bit SHA-1 HMAC)
   4 07/18/11 21:08:09 host/spark-m02.casdds.casd (ArcFour with HMAC/md5)

1.2 Merge the keytab files

To avoid managing many keytab files, you can merge the multi keytab files into one by using ktutil tool.

# start a ktuitl shell with sudo right
sudo ktutil

# load credentials from the keytab files
rkt /tmp/yarnm02.keytab
rkt /tmp/hostm02.keytab

# output the loaded credential to a new keytable file
wkt /tmp/merged.keytab

# exit the ktuitl shell
q

You can test the content of the merged keytab file with the below command

sudo klist -k /tmp/merged.keytab

1.3. Check if the hadoop servers are in the AD DNS

Normally, when the linux servers have joined the AD/Krb realm, their AD/DNS configuration are done automatically.

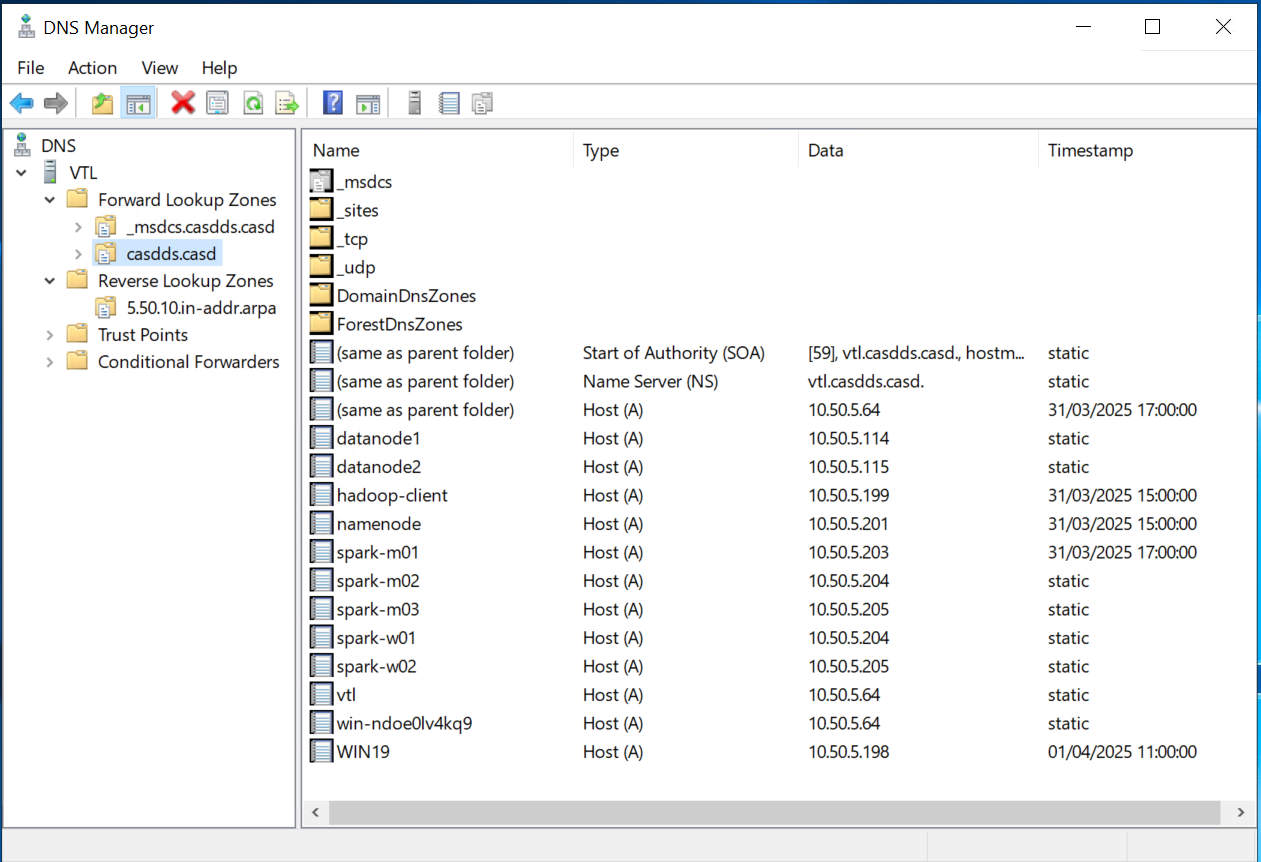

Just to make sure, you can open the DNS manager on the Domain controller where AD/Krb is located. Below figure is an example of the DNS manager GUI

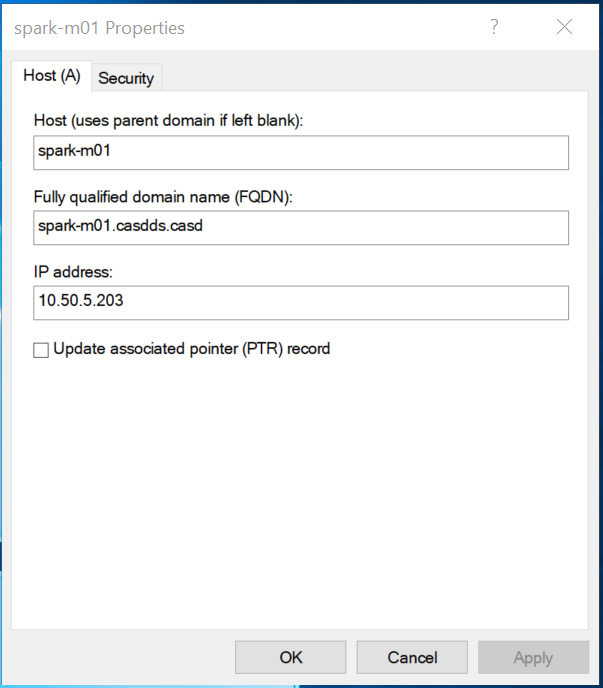

You need to check the value of FQDN and ip for each server in forward and reverse lookup zones.

Below figure is an example for the Forward loopup zone definition of a server


1.4. Check kerberos client

Normally, you should have a valid krb5 client and config on each hadoop node.

Below is an example of the krb5 client conf(/etc/krb5.conf).

[libdefaults]
default_realm = CASDDS.CASD
default_tkt_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
default_tgs_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
permitted_enctypes   = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
kdc_timesync = 1
ccache_type = 4
forwardable = true
ticket_lifetime = 24h
dns_lookup_realm = true
dns_lookup_kdc = true

#allow_weak_crypto = true

[realms]
CASDDS.CASD = {
    kdc = 10.50.5.64
    admin_server = 10.50.5.64
}

[domain_realm]
.CASDDS.CASD = CASDDS.CASD
CASDDS.CASD = CASDDS.CASD

You can enable allow_weak_crypto = true, if the AD/Krb can't use advance crypto algorithm

2. Enable SSL in the hadoop cluster

To secure communication between services in the hadoop cluster, we can enable SSL.

2.1 Generate certificate

Generate a key pair and store it in a java key store

sudo keytool -genkeypair \
  -alias hadoop \
  -keyalg RSA \
  -keysize 2048 \
  -validity 365 \
  -keystore /opt/hadoop/keystore.jks \
  -storepass changeit

Check the keystore content

sudo keytool -list -keystore /opt/hadoop/keystore.jks -storepass changeit

Export the certificate

sudo keytool -export -alias hadoop -keystore /opt/hadoop/keystore.jks -file /opt/hadoop/hadoop-cert.pem -storepass changeit

2.2 Configuration of SSL in hadoop cluster

The ssl configuration file in hadoop cluster is $HADOOP_HOME/etc/hadoop/ssl-server.xml and $HADOOP_HOME/etc/hadoop/ssl-client.xml. In our case, we only need to modify ssl-server.xml.

Below is an example of the ssl-server.xml

sudo vim ssl-server.xml
Add the below lines
<configuration>
  <property>
    <name>ssl.server.keystore.location</name>
    <value>/opt/hadoop/keystore.jks</value>
  </property>
  <property>
    <name>ssl.server.keystore.password</name>
    <value>changeit</value>
  </property>
  <property>
    <name>ssl.server.keystore.keypassword</name>
    <value>changeit</value>
  </property>
  <property>
    <name>ssl.server.keystore.type</name>
    <value>jks</value>
    <description>(Optionnel) Format du keystore (par défaut « jks »).</description>
  </property>
  <property>
    <name>ssl.server.exclude.cipher.list</name>
    <value>
      TLS_ECDHE_RSA_WITH_RC4_128_SHA,
      SSL_DHE_RSA_EXPORT_WITH_DES40_CBC_SHA,
      SSL_RSA_WITH_DES_CBC_SHA,
      SSL_DHE_RSA_WITH_DES_CBC_SHA,
      SSL_RSA_EXPORT_WITH_RC4_40_MD5,
      SSL_RSA_EXPORT_WITH_DES40_CBC_SHA,
      SSL_RSA_WITH_RC4_128_MD5
    </value>
    <description>(Optionnel) Liste des suites de chiffrement faibles à exclure.</description>
  </property>
</configuration>

This needs to be done all nodes of the hadoop cluster

2. Integrate kerberos in to Hadoop cluster

Here, we suppose you already have a working hadoop cluster, the below steps only shows how to integrate kerberos into Hadoop. If you want to learn how to deploy a hadoop cluster, you need to follow this doc

2.1 Edit hadoop-env.sh

The hadoop-env.sh file specifies all environment variables related to the hadoop cluster

Below is a list of variables you need to check

export JAVA_HOME=/usr/lib/jvm/java-11-openjdk-amd64
export HADOOP_OPTS="-Djava.net.preferIPv4Stack=true -Djava.security.debug=gssloginconfig,configfile,configparser,logincontext"
# use krb client config
export HADOOP_OPTS="-Djava.security.krb5.conf=/etc/krb5.conf $HADOOP_OPTS"
export HDFS_NAMENODE_USER=hadoop
export HDFS_DATANODE_USER=hadoop
export HDFS_SECONDARYNAMENODE_USER=hadoop
export JSVC_HOME=$(dirname $(which jsvc))
export HADOOP_CONF_DIR=/opt/hadoop/etc/hadoop
export HADOOP_SECURITY_LOGGER=INFO,RFAS,console
export JAVA_TOOL_OPTIONS="$JAVA_TOOL_OPTIONS --add-opens=java.base/sun.net.dns=ALL-UNNAMED"

2.2 Updates the security configuration of JDK

For kerberos interoperate well with JDK, we need to update the default security conf of the JDK.

sudo vim $JAVA_HOME/conf/security/java.security

# in our case, we use openjdk in debian 11. We can use the absolute path
sudo vim /usr/lib/jvm/java-11-openjdk-amd64/conf/security/java.security

# you need to add the below lines
crypto.policy=unlimited
sun.security.krb5.disableReferrals=true

By default, the RC4 encryption algo is disabled, because it's weak. But some Windows server still uses it. You can find the line jdk.jar.disabledAlgorithms and jdk.tls.disabledAlgorith, then remove the RC4 from the disabled algo list.

2.3 Update the hadoop service configuration

2.3.1 For Name nodes

For Name nodes, you need to edit the below config files: - core-site.xml - hdfs-site.xml - yarn-site.xml

sudo vim core-site.xml

# add the below lines
<configuration>
  <property>
    <name>hadoop.ssl.server.conf</name>
    <value>/opt/hadoop/etc/hadoop/ssl-server.xml</value>
  </property>
  <property>
    <name>fs.defaultFS</name>
    <value>hdfs://spark-m01.casdds.casd:9000</value>
  </property>
  <property>
    <name>hadoop.security.authentication</name>
    <value>kerberos</value>
  </property>
  <property>
    <name>hadoop.security.authorization</name>
    <value>true</value>
  </property>
    <property>
        <name>hadoop.security.group.mapping</name>
        <value>org.apache.hadoop.security.ShellBasedUnixGroupsMapping</value>
    </property>
  <property>
    <name>hadoop.http.authentication.type</name>
    <value>kerberos</value>
  </property>
  <property>
    <name>hadoop.http.authentication.kerberos.principal</name>
    <value>HTTP/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>hadoop.http.authentication.kerberos.keytab</name>
    <value>/etc/httpm01.keytab</value>
  </property>
  <property>
    <name>hadoop.http.filter.initializers</name>
    <value>org.apache.hadoop.security.AuthenticationFilterInitializer</value>
  </property>
  <property>
    <name>hadoop.security.auth_to_local</name>
    <value>
      RULE:[2:$1@$0](.*@casdds\.casd)s/@casdds\.casd//
      RULE:[1:$1]
      DEFAULT
    </value>
    <description>Mapping du principal Kerberos vers le nom d’utilisateur local.</description>
  </property>
</configuration>

sudo vim hdfs-site.xml

# add the below lines
<configuration>
  <property>
    <name>dfs.https.server.keystore.resource</name>
    <value>ssl-server.xml</value>
  </property>
  <property>
    <name>dfs.http.policy</name>
    <value>HTTPS_ONLY</value>
  </property>
  <property>
    <name>dfs.https.port</name>
    <value>50470</value>
  </property>
  <property>
    <name>dfs.data.transfer.protection</name>
    <value>authentication</value>
  </property>
  <property>
    <name>dfs.secondary.https.port</name>
    <value>50490</value>
    <description>Port HTTPS pour le secondary-namenode.</description>
  </property>
  <property>
    <name>dfs.https.address</name>
    <value>spark-m01.casdds.casd:50470</value>
    <description>Adresse HTTPS d’écoute du Namenode.</description>
  </property>
  <property>
    <name>dfs.encrypt.data.transfer</name>
    <value>true</value>
  </property>
  <property>
    <name>dfs.replication</name>
    <value>3</value>
  </property>
  <property>
    <name>dfs.namenode.name.dir</name>
    <value>file:///opt/hadoop/hadoop_tmp/hdfs/data</value>
  </property>
  <property>
    <name>dfs.datanode.data.dir</name>
    <value>file:///opt/hadoop/hadoop_tmp/hdfs/data</value>
  </property>
  <property>
    <name>dfs.permissions</name>
    <value>true</value>
    <description>Activation de la vérification des permissions sur HDFS.</description>
  </property>
  <property>
    <name>dfs.namenode.handler.count</name>
    <value>100</value>
    <description>Augmentation de la file d’attente pour gérer davantage de connexions clients.</description>
  </property>
  <property>
    <name>ipc.server.max.response.size</name>
    <value>5242880</value>
  </property>
  <property>
    <name>dfs.permissions.supergroup</name>
    <value>hadoop</value>
    <description>Nom du groupe des super-utilisateurs.</description>
  </property>
  <property>
    <name>dfs.cluster.administrators</name>
    <value>hadoop</value>
    <description>ACL pour l’accès aux servlets par défaut de HDFS.</description>
  </property>
  <property>
    <name>dfs.access.time.precision</name>
    <value>0</value>
    <description>Désactivation de la mise à jour des temps d’accès pour les fichiers HDFS.</description>
  </property>
  <property>
    <name>dfs.block.access.token.enable</name>
    <value>true</value>
    <description>Activation des tokens d’accès pour sécuriser l’accès aux datanodes.</description>
  </property>
  <property>
    <name>ipc.server.read.threadpool.size</name>
    <value>5</value>
  </property>
  <property>
    <name>dfs.namenode.http-address</name>
    <value>spark-m01.casdds.casd:9870</value>
  </property>
  <property>
    <name>dfs.namenode.kerberos.principal</name>
    <value>hdfs/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>dfs.namenode.keytab.file</name>
    <value>/etc/hdfsm01.keytab</value>
  </property>
  <property>
    <name>dfs.secondary.namenode.kerberos.principal</name>
    <value>hdfs/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>dfs.secondary.namenode.keytab.file</name>
    <value>/etc/hdfsm01.keytab</value>
  </property>
  <property>
    <name>dfs.permissions.enabled</name>
    <value>true</value>
  </property>
</configuration>

sudo vim yarn-site.xml

# add the below lines
<configuration>
  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
  <property>
    <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
    <value>org.apache.hadoop.mapred.ShuffleHandler</value>
  </property>
  <property>
    <name>yarn.resourcemanager.hostname</name>
    <value>spark-m01.casdds.casd</value>
  </property>
  <property>
    <name>yarn.nodemanager.resource.cpu-vcores</name>
    <value>2</value>
  </property>
  <property>
    <name>yarn.nodemanager.resource.memory-mb</name>
    <value>2048</value>
  </property>
  <property>
    <name>yarn.scheduler.maximum-allocation-mb</name>
    <value>2048</value>
  </property>
  <property>
    <name>yarn.scheduler.minimum-allocation-mb</name>
    <value>512</value>
  </property>
  <property>
    <name>yarn.resourcemanager.principal</name>
    <value>yarn/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>yarn.resourcemanager.keytab</name>
    <value>/etc/yarnm01.keytab</value>
  </property>
  <property>
    <name>yarn.timeline-service.principal</name>
    <value>yarn/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>yarn.timeline-service.keytab</name>
    <value>/etc/yarnm01.keytab</value>
  </property>
</configuration>

2.3.2 For DataNode

For data nodes, you need to edit the below configuration files: - core-site.xml - hdfs-site.xml - yarn-site.xml

sudo vim core-site.xml

# add the below lines
<configuration>
  <property>
    <name>fs.defaultFS</name>
    <value>hdfs://spark-m01.casdds.casd:9000</value>
  </property>
  <property>
    <name>hadoop.security.authentication</name>
    <value>kerberos</value>
  </property>
  <property>
    <name>hadoop.security.authorization</name>
    <value>true</value>
  </property>
  <property>
    <name>hadoop.ssl.server.conf</name>
    <value>ssl-server.xml</value>
  </property>
  <property>
    <name>hadoop.security.auth_to_local</name>
    <value>
      RULE:[2:$1@$0](.*@CASDDS\.CASD)s/@CASDDS\.CASD//
      RULE:[1:$1]
      DEFAULT
    </value>
    <description>Mapping du principal Kerberos vers l’utilisateur local.</description>
  </property>
</configuration>

sudo vim hdfs-site.xml

# add the below lines
<configuration>
  <property>
    <name>dfs.https.server.keystore.resource</name>
    <value>ssl-server.xml</value>
  </property>
  <property>
    <name>dfs.http.policy</name>
    <value>HTTPS_ONLY</value>
  </property>
  <property>
    <name>dfs.https.port</name>
    <value>50470</value>
  </property>
  <property>
    <name>dfs.data.transfer.protection</name>
    <value>authentication</value>
  </property>
  <property>
    <name>dfs.secondary.https.port</name>
    <value>50490</value>
    <description>Port HTTPS pour le secondary-namenode.</description>
  </property>
  <property>
    <name>dfs.https.address</name>
    <value>ip-10-50-5-203.casdds.casd:50470</value>
    <description>Adresse HTTPS d’écoute du Namenode sur le DataNode.</description>
  </property>
  <property>
    <name>dfs.encrypt.data.transfer</name>
    <value>true</value>
  </property>
  <property>
    <name>dfs.replication</name>
    <value>3</value>
  </property>
  <property>
    <name>dfs.namenode.name.dir</name>
    <value>file:///opt/hadoop/hadoop_tmp/hdfs/data</value>
  </property>
  <property>
    <name>dfs.datanode.data.dir</name>
    <value>file:///opt/hadoop/hadoop_tmp/hdfs/data</value>
  </property>
  <property>
    <name>dfs.datanode.kerberos.principal</name>
    <value>hdfs/spark-m02.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>dfs.datanode.keytab.file</name>
    <value>/etc/hdfsm02.keytab</value>
  </property>
  <property>
    <name>dfs.namenode.kerberos.principal</name>
    <value>hdfs/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>dfs.namenode.keytab.file</name>
    <value>/etc/hdfsm01.keytab</value>
  </property>
  <property>
    <name>dfs.permissions</name>
    <value>true</value>
    <description>Activation de la vérification des permissions sur HDFS.</description>
  </property>
  <property>
    <name>dfs.permissions.supergroup</name>
    <value>hadoop</value>
    <description>Nom du groupe des super-utilisateurs.</description>
  </property>
  <property>
    <name>ipc.server.max.response.size</name>
    <value>5242880</value>
  </property>
  <property>
    <name>dfs.block.access.token.enable</name>
    <value>true</value>
    <description>Activation des tokens d’accès pour l’accès aux datanodes.</description>
  </property>
  <property>
    <name>dfs.datanode.data.dir.perm</name>
    <value>750</value>
    <description>Permissions requises sur les répertoires de données.</description>
  </property>
  <property>
    <name>dfs.access.time.precision</name>
    <value>0</value>
    <description>Désactivation de la mise à jour des temps d’accès pour les fichiers HDFS.</description>
  </property>
  <property>
    <name>dfs.cluster.administrators</name>
    <value>hadoop</value>
    <description>ACL pour l’accès aux servlets par défaut de HDFS.</description>
  </property>
  <property>
    <name>ipc.server.read.threadpool.size</name>
    <value>5</value>
  </property>
</configuration>

sudo vim yarn-site.xml

# add the below lines
<configuration>
  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
  <property>
    <name>yarn.nodemanager.aux-services.mapreduce.shuffle.class</name>
    <value>org.apache.hadoop.mapred.ShuffleHandler</value>
  </property>
  <property>
    <name>yarn.nodemanager.hostname</name>
    <value>spark-m02.casdds.casd</value>
  </property>
  <property>
    <name>yarn.resourcemanager.hostname</name>
    <value>spark-m01.casdds.casd</value>
  </property>
  <property>
    <name>yarn.nodemanager.resource.cpu-vcores</name>
    <value>2</value>
  </property>
  <property>
    <name>yarn.nodemanager.resource.memory-mb</name>
    <value>2048</value>
  </property>
  <property>
    <name>yarn.scheduler.maximum-allocation-mb</name>
    <value>2048</value>
  </property>
  <property>
    <name>yarn.scheduler.minimum-allocation-mb</name>
    <value>512</value>
  </property>
  <property>
    <name>yarn.resourcemanager.principal</name>
    <value>yarn/spark-m01.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>yarn.resourcemanager.keytab</name>
    <value>/etc/yarnm01.keytab</value>
  </property>
  <property>
    <name>yarn.timeline-service.principal</name>
    <value>yarn/spark-m02.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>yarn.timeline-service.keytab</name>
    <value>/etc/yarnm02.keytab</value>
  </property>
  <property>
    <name>yarn.nodemanager.principal</name>
    <value>yarn/spark-m02.casdds.casd@CASDDS.CASD</value>
  </property>
  <property>
    <name>yarn.nodemanager.keytab</name>
    <value>/etc/yarnm02.keytab</value>
  </property>
  <property>
    <name>yarn.timeline-service.http-authentication.type</name>
    <value>kerberos</value>
  </property>
  <property>
    <name>yarn.nodemanager.vmem-check-enabled</name>
    <value>true</value>
  </property>
</configuration>

Refresh User to group mappings

hdfs dfsadmin -refreshUserToGroupsMappings

Reference

  • https://hadoop.apache.org/docs/stable/hadoop-project-dist/hadoop-common/SecureMode.html
  • http://docs.cloudera.com.s3-website-us-east-1.amazonaws.com/HDPDocuments/HDP3/HDP-3.1.5/security-reference/content/kerberos_nonambari_adding_security_information_to_configuration_files.html

Repo test

https://github.com/CASD-EU/admin_sys/tree/test/dev/roles
