Yarn introduction¶

YARN(Yet Another Resource Negotiator), was introduced in Hadoop version 2.0 by Yahoo and Hortonworks in 2012. The basic idea of YARN in Hadoop is to divide the functions of resource management and task scheduling/monitoring into separate daemon processes.

YARN in Hadoop allows for the execution of various data processing engines such as batch processing, graph processing, stream processing, and interactive processing, as well as the processing of data stored in HDFS.

If you consider yarn as a Operating System for a distributed calculation cluster, then the jobs (MapReduce, spark, etc.) are the applications run on the OS.

Why Yarn?¶

better resource management: YARN in Hadoop efficiently and dynamically allocates all cluster resources, resulting in higher Hadoop utilization compared to previous versions which help in better cluster utilization.
support different job mode: It supports streaming, interactive and batch jobs
support many calculation frameworks: It supports MapReduce(hadoop), Spark, etc.

Concepts¶

The fundamental idea of YARN is to split up the functionalities of resource management and job scheduling/monitoring into separate daemons. The idea is to have a global ResourceManager (RM) and per-application ApplicationMaster (AM). An application is either a single job or a DAG of jobs.

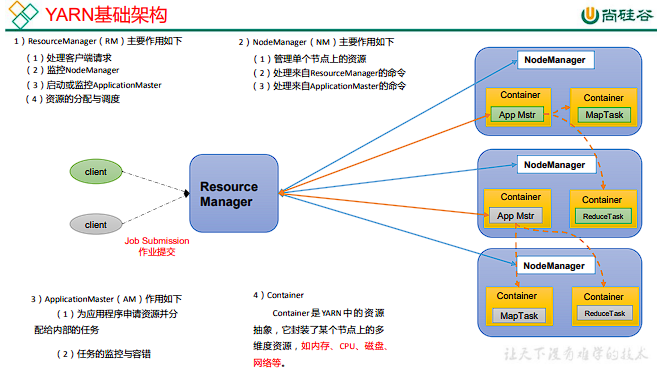

Yarn has four principal concepts: - ResourceManager: The ResourceManager is the ultimate authority that arbitrates resources among all the applications in the system. - NodeManager: The NodeManager is the per-machine framework agent who is responsible for containers, monitoring their resource usage (cpu, memory, disk, network) and reporting the same to the ResourceManager/Scheduler. - ApplicationMaster: Each application will have it's own dedicated ApplicationMaster. It's specific for each framework(MR, spark, etc.). It negotiates resources from the ResourceManager and working with the NodeManager(s) to execute and monitor the tasks. - Container: It is a collection of physical resources such as RAM, CPU cores, and disks on a single node (like a vm in a hypervisor). It is supervised by the NodeManager and scheduled by the ResourceManager. Container can have different

Resource manager¶

The ResourceManager has two main components: - Scheduler: The Scheduler is responsible for allocating resources to the various running applications subject to familiar constraints of capacities, queues etc. The Scheduler is pure scheduler in the sense that it performs no monitoring or tracking of status for the application. Also, it offers no guarantees about restarting failed tasks either due to application failure or hardware failures. The Scheduler performs its scheduling function based on the resource requirements of the applications; it does so based on the abstract notion of a resource Container which incorporates elements such as memory, cpu, disk, network etc. The Scheduler has a pluggable policy which is responsible for partitioning the cluster resources among the various queues, applications etc. The current schedulers such as the CapacityScheduler and the FairScheduler would be some examples of plug-ins.

ApplicationsManager: The ApplicationsManager is responsible for accepting job-submissions, negotiating the first container for executing the application specific ApplicationMaster and provides the service for restarting the ApplicationMaster container on failure. The per-application ApplicationMaster has the responsibility of negotiating appropriate resource containers from the Scheduler, tracking their status and monitoring for progress.

Workflow of yarn job¶

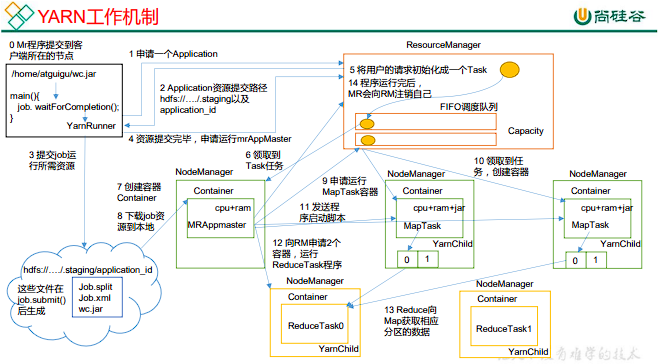

The workflow of yarn job for different framework is a bit different. The below workflow represents the MapReduce job

MR job submission via the client node
YarnRunner(in the client node) send request to (RM)ResourceManager to create an Application。
RM will create an application and create a folder with the aplication_id in hdfs://.../staging/. This path will be sent back to YarnRunner。
YarnRunner will copy all application required files into this folder.
After file upload, YarnRunner will require a mrAppMaster
RM will create a task from this request
One of the available NodeManager will take the task and run.
To run the task, the NodeManager first create a MRAppmaster Container
This MRAppmaster Container will copy the required code and conf from the HDFS to local node.
After downloading the code, this MRAppmaster Container will ask RM to run MapTask
RM uses MapTask to create tasks. The other available NodeManagers will take these tasks and create MapTask Container accordingly
MRAppmaster Container sends code and conf to the created MapTask Container, after receiving all requried code and conf, NodeManager starts the MapTask in the MapTask Container.
MRAppmaster Container waits all MapTask terminate, then it will ask RM to start the ReduceTask.
Same as MapTask, the node manager will create reduceTask container
ReduceTask Container will ask MapTask Container to send their data.
After all tasks are executed, MRAppmaster Container will ask RM to clean.

Useful commands¶

General commands¶

# list all available node of the cluster
yarn node -list -all

# list all applications
yarn application -list

# you can filter the list by app state
yarn application -list -appStates FINISHED

# kill an application
yarn application -kill <application-id>

# check application log
yarn logs -applicationId <application-id>

# Check the log of a container
yarn logs -applicationld<Applicationld> -containerld<Containerld>

# check the status of a container
yarn container -status <Containerld>

# list the attempts of an application
yarn applicationattempt -list <Applicationld>

# get the status of an attempt
yarn applicationattempt -staus <ApplicatonAttemptld>

# get the container list of an attempt
yarn container -list <Application Attemptld>

Queue commands¶

# reload the queue config
yarn rmadmin -refreshOueues

# check queue status
yarn queue -status <OueueName>

Key config of yarn¶

Yarn has two import config files: - yarn-env.sh - yarn-site.xml

yarn-env.sh¶

yarn-site.xml¶

In yarn-site.xml, you need to pay attention to the below configuration

yarn.resourcemananger.scheduler.class : define the cluster scheduler class(e.g. CapacityScheduler, FairScheduler)
yarn.resourcemananger.scheduler.client.thread-count: The thread number which will handler the yarn client request. Default value is 50, if you have more than 50 client which will send request to resource manager, you need to increase the thread count.
yarn.nodemanager.resource.pcores-vcores-ratio: The ration of vcore(in yarn container) and physical core. Default value is 1.0 It means, if you have 8 core in your server, the yarn container can have 8 vcore at max. If you want to have more flexibility of the conf, you can set it to 2.0. It means the yarn container can have 16 vcore at max
yarn.nodemanager.resource.cpu-vcores: It defines the max vcore a nodemanager can use in total. Default value is 8
yarn.nodemanager.resource

Resource manager config¶

<config-template>
     <property>
      <name>yarn.resourcemanager.address</name>
      <value>__HDP_RESOURCEMANAGER__:8050</value>
    </property>

    <property>
      <name>yarn.resourcemanager.admin.address</name>
      <value>__HDP_RESOURCEMANAGER__:8141</value>
    </property>

    <property>
      <name>yarn.resourcemanager.am.max-attempts</name>
      <value>2</value>
    </property>

    <property>
      <name>yarn.resourcemanager.bind-host</name>
      <value>0.0.0.0</value>
    </property>

    <property>
      <name>yarn.resourcemanager.connect.max-wait.ms</name>
      <value>900000</value>
    </property>

    <property>
      <name>yarn.resourcemanager.connect.retry-interval.ms</name>
      <value>30000</value>
    </property>

    <property>
      <name>yarn.resourcemanager.fs.state-store.retry-policy-spec</name>
      <value>2000, 500</value>
    </property>

    <property>
      <name>yarn.resourcemanager.fs.state-store.uri</name>
      <value> </value>
    </property>

    <property>
      <name>yarn.resourcemanager.ha.enabled</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.resourcemanager.hostname</name>
      <value>__HDP_RESOURCEMANAGER__</value>
    </property>

    <property>
      <name>yarn.resourcemanager.nodes.exclude-path</name>
      <value>/etc/hadoop/conf/yarn.exclude</value>
    </property>

    <property>
      <name>yarn.resourcemanager.recovery.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.resourcemanager.resource-tracker.address</name>
      <value>__HDP_RESOURCEMANAGER__:8025</value>
    </property>

    <property>
      <name>yarn.resourcemanager.scheduler.address</name>
      <value>__HDP_RESOURCEMANAGER__:8030</value>
    </property>

    <property>
      <name>yarn.resourcemanager.scheduler.class</name>
      <value>org.apache.hadoop.yarn.server.resourcemanager.scheduler.capacity.CapacityScheduler</value>
    </property>

    <property>
      <name>yarn.resourcemanager.scheduler.monitor.enable</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.resourcemanager.state-store.max-completed-applications</name>
      <value>${yarn.resourcemanager.max-completed-applications}</value>
    </property>

    <property>
      <name>yarn.resourcemanager.store.class</name>
      <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <property>
      <name>yarn.resourcemanager.system-metrics-publisher.dispatcher.pool-size</name>
      <value>10</value>
    </property>

    <property>
      <name>yarn.resourcemanager.system-metrics-publisher.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.resourcemanager.webapp.address</name>
      <value>__HDP_RESOURCEMANAGER__:8088</value>
    </property>

    <property>
      <name>yarn.resourcemanager.webapp.delegation-token-auth-filter.enabled</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.resourcemanager.webapp.https.address</name>
      <value>__HDP_RESOURCEMANAGER__:8090</value>
    </property>

    <property>
      <name>yarn.resourcemanager.work-preserving-recovery.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.resourcemanager.work-preserving-recovery.scheduling-wait-ms</name>
      <value>10000</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-acl</name>
      <value>world:anyone:rwcda</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-address</name>
      <value>__HDP_ZOOKEEPER_HOSTS_WITH_PORT__</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-num-retries</name>
      <value>1000</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-retry-interval-ms</name>
      <value>1000</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-state-store.parent-path</name>
      <value>/rmstore</value>
    </property>

    <property>
      <name>yarn.resourcemanager.zk-timeout-ms</name>
      <value>10000</value>
    </property>
</config-template>

scheduler config¶

<config-template>
    <property>
      <name>yarn.scheduler.maximum-allocation-mb</name>
      <value>8192</value>
      <!-- [DE239909] tune for DCAE CDAP -->
    </property>

    <property>
      <name>yarn.scheduler.maximum-allocation-vcores</name>
      <value>2</value>
    </property>

    <property>
      <name>yarn.scheduler.minimum-allocation-mb</name>
      <value>512</value>
      <!-- [DE239909] tune for DCAE CDAP -->
    </property>

    <property>
      <name>yarn.scheduler.minimum-allocation-vcores</name>
      <value>1</value>
    </property>

</config-template>

node manager config¶

<config-template>
    <property>
      <name>yarn.nodemanager.address</name>
      <value>0.0.0.0:45454</value>
    </property>

    <property>
      <name>yarn.nodemanager.admin-env</name>
      <value>MALLOC_ARENA_MAX=$MALLOC_ARENA_MAX</value>
    </property>

    <property>
      <name>yarn.nodemanager.aux-services</name>
      <value>mapreduce_shuffle</value>
    </property>

    <property>
      <name>yarn.nodemanager.aux-services.mapreduce_shuffle.class</name>
      <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>

    <property>
      <name>yarn.nodemanager.bind-host</name>
      <value>0.0.0.0</value>
    </property>

    <property>
      <name>yarn.nodemanager.container-executor.class</name>
      <value>org.apache.hadoop.yarn.server.nodemanager.DefaultContainerExecutor</value>
    </property>

    <property>
      <name>yarn.nodemanager.container-monitor.interval-ms</name>
      <value>3000</value>
    </property>

    <property>
      <name>yarn.nodemanager.delete.debug-delay-sec</name>
      <value>43200</value>
      <!-- [DE239909] tune for DCAE CDAP -->
    </property>

    <property>
      <name>yarn.nodemanager.disk-health-checker.max-disk-utilization-per-disk-percentage</name>
      <value>90</value>
    </property>

    <property>
      <name>yarn.nodemanager.disk-health-checker.min-free-space-per-disk-mb</name>
      <value>1000</value>
    </property>

    <property>
      <name>yarn.nodemanager.disk-health-checker.min-healthy-disks</name>
      <value>0.25</value>
    </property>

    <property>
      <name>yarn.nodemanager.health-checker.interval-ms</name>
      <value>135000</value>
    </property>

    <property>
      <name>yarn.nodemanager.health-checker.script.timeout-ms</name>
      <value>60000</value>
    </property>

    <property>
      <name>yarn.nodemanager.linux-container-executor.cgroups.hierarchy</name>
      <value>hadoop-yarn</value>
    </property>

    <property>
      <name>yarn.nodemanager.linux-container-executor.cgroups.mount</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.nodemanager.linux-container-executor.cgroups.strict-resource-usage</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.nodemanager.linux-container-executor.group</name>
      <value>hadoop</value>
    </property>

    <property>
      <name>yarn.nodemanager.linux-container-executor.resources-handler.class</name>
      <value>org.apache.hadoop.yarn.server.nodemanager.util.DefaultLCEResourcesHandler</value>
    </property>

    <property>
      <name>yarn.nodemanager.local-dirs</name>
      <value>__YARN_LOCAL_DIR__</value>
    </property>

    <property>
      <name>yarn.nodemanager.log-aggregation.compression-type</name>
      <value>gz</value>
    </property>

    <property>
      <name>yarn.nodemanager.log-aggregation.debug-enabled</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.nodemanager.log-aggregation.num-log-files-per-app</name>
      <value>30</value>
    </property>

    <property>
      <name>yarn.nodemanager.log-aggregation.roll-monitoring-interval-seconds</name>
      <value>-1</value>
    </property>

    <property>
      <name>yarn.nodemanager.log-dirs</name>
      <value>__YARN_LOG_DIR__</value>
    </property>

    <property>
      <name>yarn.nodemanager.log.retain-second</name>
      <value>604800</value>
    </property>

    <property>
      <name>yarn.nodemanager.recovery.dir</name>
      <value>__YARN_NODEMANAGER_RECOVERY_DIR__</value>
    </property>

    <property>
      <name>yarn.nodemanager.recovery.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.nodemanager.remote-app-log-dir</name>
      <value>/app-logs</value>
    </property>

    <property>
      <name>yarn.nodemanager.remote-app-log-dir-suffix</name>
      <value>logs</value>
    </property>

    <property>
      <name>yarn.nodemanager.resource.cpu-vcores</name>
      <value>6</value>
    </property>

    <property>
      <name>yarn.nodemanager.resource.memory-mb</name>
      <value>15360</value>
    </property>

    <property>
      <name>yarn.nodemanager.resource.percentage-physical-cpu-limit</name>
      <value>80</value>
    </property>

    <property>
      <name>yarn.nodemanager.vmem-check-enabled</name>
      <value>false</value>
    </property>

    <property>
      <name>yarn.nodemanager.vmem-pmem-ratio</name>
      <value>2.1</value>
    </property>

    <property>
      <name>yarn.nodemanager.resource.pcores-vcores-ratio</name>
      <value>2.1</value>
    </property>
</config-template>

Yarn timeline server¶

The yarn timeline server can store history of the yarn application. It work likes the spark history server.

For a registered application, you can the below information:

application queue name
The conf and user profile inside the ApplicationSubmissionContext
The attempt list of the Application
The container list of the attempt
The info of the Container

Below is a template for yarn timeline service config, you need to edit it.

<cofnig>
<property>
      <name>yarn.timeline-service.address</name>
      <value>__HDP_APP_TIMELINE_SERVER__:10200</value>
    </property>

    <property>
      <name>yarn.timeline-service.bind-host</name>
      <value>0.0.0.0</value>
    </property>

    <property>
      <name>yarn.timeline-service.client.max-retries</name>
      <value>30</value>
    </property>

    <property>
      <name>yarn.timeline-service.client.retry-interval-ms</name>
      <value>1000</value>
    </property>

    <property>
      <name>yarn.timeline-service.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.timeline-service.generic-application-history.store-class</name>
      <value>org.apache.hadoop.yarn.server.applicationhistoryservice.NullApplicationHistoryStore</value>
    </property>

    <property>
      <name>yarn.timeline-service.http-authentication.simple.anonymous.allowed</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.timeline-service.http-authentication.type</name>
      <value>simple</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-state-store.path</name>
      <value>/grid/0/hadoop/yarn/timeline</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-timeline-store.path</name>
      <value>/grid/0/hadoop/yarn/timeline</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-timeline-store.read-cache-size</name>
      <value>104857600</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-timeline-store.start-time-read-cache-size</name>
      <value>10000</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-timeline-store.start-time-write-cache-size</name>
      <value>10000</value>
    </property>

    <property>
      <name>yarn.timeline-service.leveldb-timeline-store.ttl-interval-ms</name>
      <value>300000</value>
    </property>

    <property>
      <name>yarn.timeline-service.recovery.enabled</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.timeline-service.state-store-class</name>
      <value>org.apache.hadoop.yarn.server.timeline.recovery.LeveldbTimelineStateStore</value>
    </property>

    <property>
      <name>yarn.timeline-service.store-class</name>
      <value>org.apache.hadoop.yarn.server.timeline.LeveldbTimelineStore</value>
    </property>

    <property>
      <name>yarn.timeline-service.ttl-enable</name>
      <value>true</value>
    </property>

    <property>
      <name>yarn.timeline-service.ttl-ms</name>
      <value>2678400000</value>
    </property>

    <property>
      <name>yarn.timeline-service.webapp.address</name>
      <value>__HDP_APP_TIMELINE_SERVER__:8188</value>
    </property>

    <property>
      <name>yarn.timeline-service.webapp.https.address</name>
      <value>__HDP_APP_TIMELINE_SERVER__:8190</value>
    </property>

</cofnig>

To complete with this link https://open.alipay.com/portal/forum/post/126201025?ant_source=opendoc_recommend
