Introduction of containerd

containerd is an industry-standard container runtime with an emphasis on simplicity, robustness, and portability. It's available as a daemon for Linux and Windows. It manages the complete container lifecycle of its host system, from image transfer and storage to container execution and supervision to low-level storage to network attachments and beyond.

containerd is designed to be embedded into a larger system(e.g. K8s), rather than being used directly by developers or end-users.

1. Why containerd?

1.1 Kubernetes Native Support (CRI)

The old docker runtime does not directly support the CRI(Container Runtime Interface) of k8s, so Kubernetes had to use a middle layer called dockershim to communicate with Docker. This adds overhead and complexity.

1.2 Efficiency and Performance

Containerd is a purpose-built container runtime that is lightweight and efficient. Since it is not tied to Docker's other functionalities (like image building or extensive CLI commands), it is optimized solely for container management.

  • Lower Overhead: Docker includes additional features and a higher-level daemon that isn't needed for Kubernetes, adding extra layers of processing.
  • Reduced Resource Consumption: By cutting out the Docker daemon, containerd consumes fewer resources, improving the overall performance and reducing the memory and CPU usage on each node.

As a result, you can't use containerd to build docker image. You can only pull images and deploy a container.

1.3 OCI compliant

Containerd uses runc as low-level container runtime, which implements the Open Container Initiative (OCI) Runtime Specification. OCI spec defines how containers should be created and run. As a result, runc is a standard across container runtimes.

runc interacts directly with the Linux kernel (e.g. cgroups and seccomp) to execute the containers, and make sure
that containers run in isolated and secure environments. .

2. Integration in Docker engine

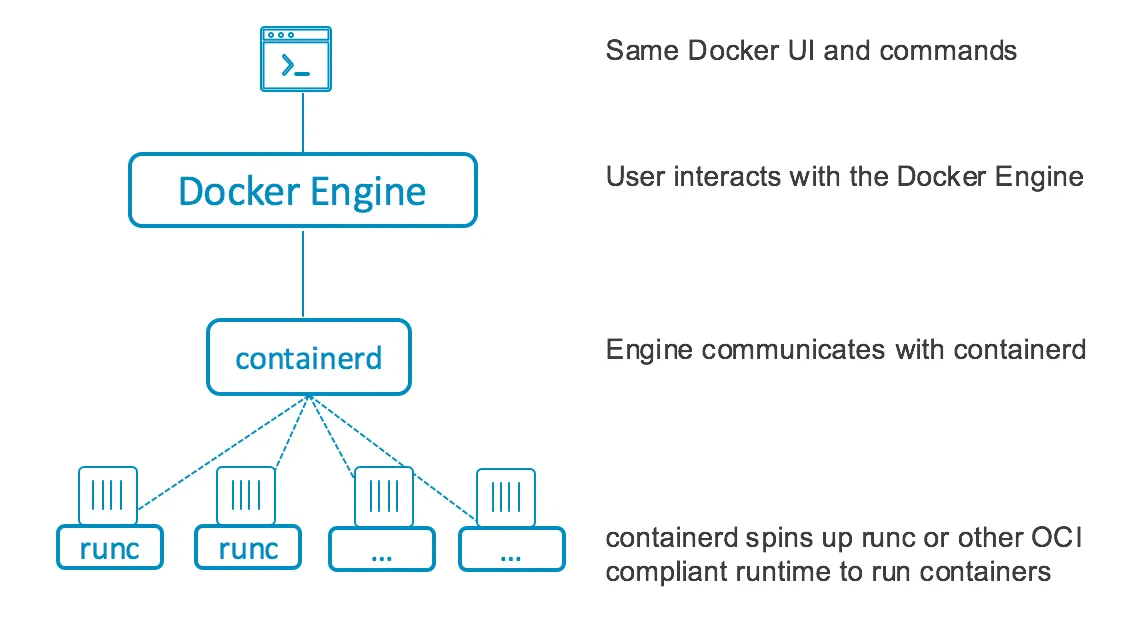

Containerd can be used inside Docker engine. The below figure shows the general architecture.


3. Integration in K8s

In k8s worker nodes, a daemon called kubelet is responsible for communicating with the container runtime(e.g. containerd). This communication is ensured by CRI (Container Runtime Interface), which is a Kubernetes-specific API that allows Kubernetes to interact with various container runtimes in a standardized way. Kubernetes uses this interface to manage containers on nodes, regardless of the underlying container runtime.

3.1 General workflow

Step1: users issue a command kubectl apply -f deployment.yaml, kubectl apply sends a REST request to the Kubernetes API server to create or update the Deployment resource defined in the deployment.yaml file.

Step2: The API server validates the request (ensuring the resource definition is correct) and stores the Deployment object in etcd. This object represents the desired state: the number of replicas, the pod template, labels, etc.

Step3: The controller manager gets notified by the API server about the new Deployment. It continuously watches for changes to Deployment resources, detects the new or updated Deployment object. If the current stat does not correspond the desired state. New pods creation request will be sent to scheduler.

Step4: The scheduler takes into account factors such as resource requests (CPU, memory), node availability, taints, and affinity/anti-affinity rules to assign the pod to a suitable node.

Step5: Kubelet of the target node receives the pod specs from the scheduler. It passes the request to Containerd through the CRI.

Step6: Containerd then pulls the required container images from the specified container registry (e.g., DockerHub, Google Container Registry) if they are not already present on the node. Containerd creates and starts the containers based on the pod spec, handling everything from resource allocation (CPU, memory) to networking and storage. It also manages container logs and any other runtime-specific functions (e.g., container pause/unpause).

Step7: The Kubelet continues to monitor the pod's health, and if a pod or container fails, Kubernetes will attempt to restart it to maintain the desired state.

4. Other important client

Containerd uses CRI to communicate with k8s, it also provides two other clients:

  • CTR: is a low-level CLI tool for users interacting directly with containerd.
  • crictl:

4.1 CTR

It is primarily used for debugging, testing, and interacting with containerd without going through higher-level tools like CRI or Docker. While ctr can be used to manage containers, images, namespaces, and snapshots, it is not recommended for general-purpose use in production environments.

4.2 crictl

crictl is a lightweight command-line tool for managing container runtimes. It is particularly useful for Kubernetes environments that use CRI-compatible runtimes. It's not bundled with contianerd. You need to follow the below steps to install crictl on an Ubuntu/debian system.

You can find the official github page here

My k8s cluster version 1.31.1, so I choose 1.31.1 as the crictl version

# Step1: get the source
VERSION="v1.31.1"  # You can change this to the latest version
wget https://github.com/kubernetes-sigs/cri-tools/releases/download/$VERSION/crictl-$VERSION-linux-amd64.tar.gz

# step2: unzip the source
tar -xzvf crictl-v1.31.1-linux-amd64.tar.gz
# you should see a bin called crictl after unzip

# step3: copy the bin to your local bin, so you can call it from anywhere
sudo mv crictl /usr/local/bin/

# step4: check the version
crictl --version

# step5: config crictl endpoint
sudo vim /etc/crictl.yaml

# put the following content in it, you need to choose one which fit your installation
# example configuration for Docker:
runtime-endpoint: unix:///var/run/cri-dockerd.sock

# for contained:
runtime-endpoint: unix:///run/containerd/containerd.sock

# step6: check your endpoint info
sudo crictl info

If you have an older version of kubeadm, the newer version of the crictl should work without problems.

If you see the details of your endpoint, now you can run any crictl command Below are a list of useful command

# list all existing images
sudo crictl images

# pull a container image
sudo crictl pull <image-name>:<tag>
# for example
sudo crictl pull nginx:latest

# delete a image
sudo crictl rmi <image-name>
# example
sudo crictl rmi nginx:latest

# view all running pods
sudo crictl pods

# list all containers (running and stopped)
sudo crictl ps -a

# view container logs
sudo crictl logs <container-id>

# start/stop a container
sudo crictl start/stop/pause/unpause <container-id>

# Attach to a Running Container
sudo crictl attach <container-id>

# execute a command inside a running container
sudo crictl exec <container-id> <command>
# for example
sudo crictl exec 712fe34fbf5b9  /bin/sh
