Configure debian server to use AD/Krb for sshd authentication¶

In this tutorial, we show how to configure sshd, pam, sssd, to allow a debian 11 server to use AD/Krb as authentication server. We will follow the below steps:

We suppose we have :

AD/Krb : The ip address is 10.50.5.64, ad domain name casdds.casd, krb realm name CASDDS.CASD, hostname auth, fqdn is auth.casdds.casd
debian 11: ip address is 10.50.5.199, hostname is hadoop-client, fqdn is hadoop-client.casdds.casd

Step 1: Prerequisite¶

1.1 Reset hostname of hadoop-client¶

The hostname is essential for the server to have a valid FQDN in the domain, so we need to make sure the hostname is set correctly. Follow the below steps: - set system hostname - update /etc/hosts

# general form
sudo hostnamectl set-hostname <custom-hostname>

# for example
sudo hostnamectl set-hostname hadoop-client

# check the new hostname with below command
hostname

# expected output
hadoop-client

you can also directly edit the hostname config file(not recommended) by using sudo vim /etc/hostname

Update /etc/hosts:

sudo vim /etc/hosts

127.0.1.1 hadoop-client.casdds.casd hadoop-client
10.50.5.199 hadoop-client.casdds.casd   hadoop-client

1.2 Update system packages in hadoop-client¶

sudo apt update
sudo apt upgrade

1.3 Change dns server settings in hadoop-client¶

To join the server into an AD domain, you must use the AD as dns server.

Edit the /etc/resolv.conf :

search casdds.casd
nameserver 10.50.5.64
nameserver 8.8.8.8

1.4 Install the required packages in hadoop-client¶

sudo apt install realmd sssd sssd-tools libnss-sss libpam-sss adcli samba-common-bin krb5-user oddjob oddjob-mkhomedir packagekit -y

Step 2 : Join the debian server(hadoop-client) to the AD domain¶

2.1. Check if the domain can be reached or not¶

realm discover CASDDS.CASD

If the error message is realm command is unknown, open a new shell.

If the error message is CASDDS.CASD is unknown, check the dns server ip is reachable, and dns server name setup is correct.

2.2. Join the server(hadoop-client) to the AD domain¶

To execute the below command, you must have an account with domain administrator privilege :

sudo realm join --user=Administrateur CASDDS.CASD

If there is no error message, it means your server has joined the domain.

2.3 Configure the linux server(hadoop-client) account in AD¶

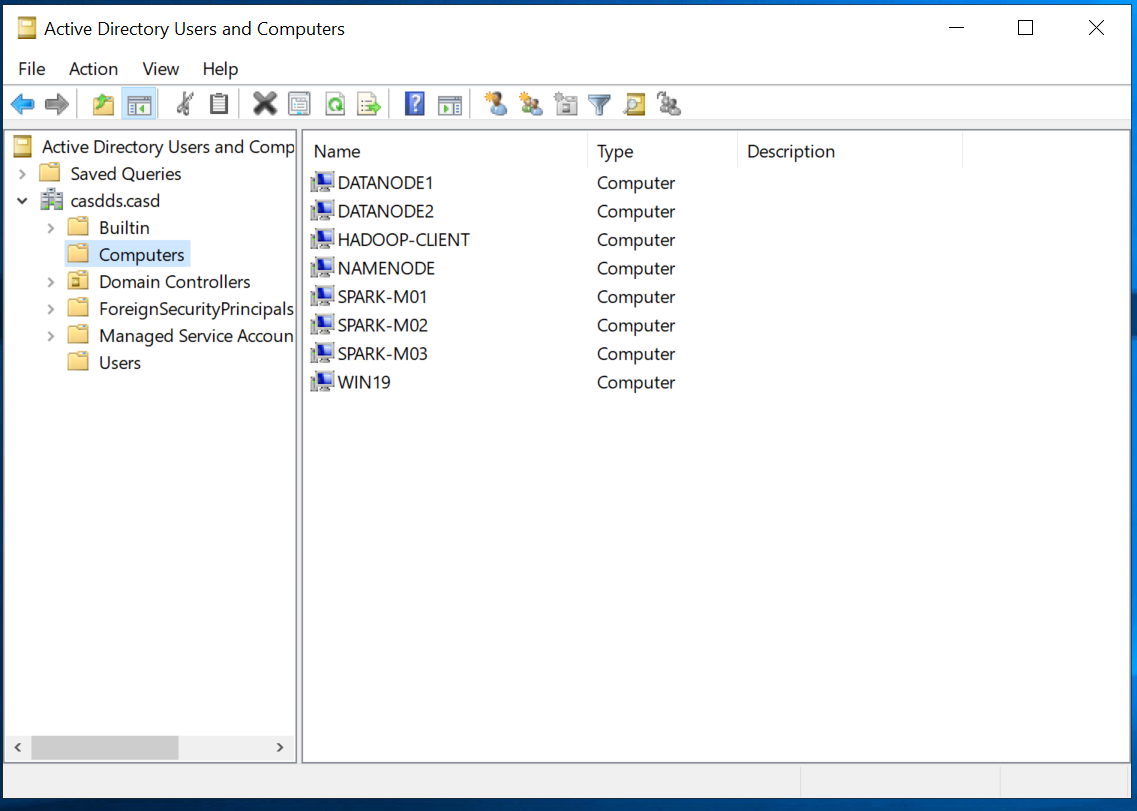

If the hadoop-client has success joined the AD domain, you should see the server appears in the Computer section in the AD manager GUI. Check the below figure

To check, you need to connect to the Windows Server -> Open AD manager -> In Users and Computers subfolder of Active Directory. You should find a line of HADOOP-CLIENT. Right Click on it, and select properties, you should see the below pop-up window

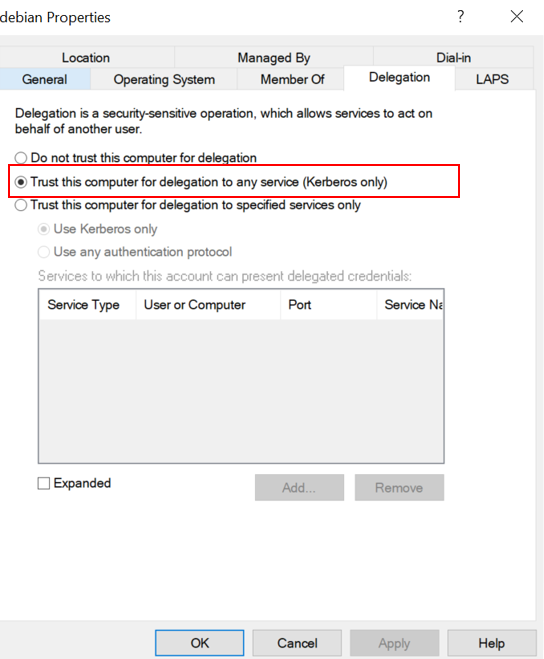

Select the Trust this computer for delegation to any service option in Delegation.

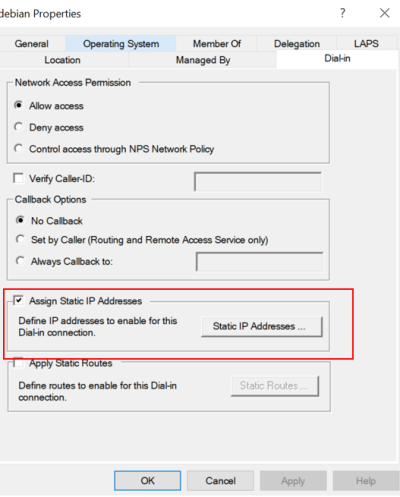

Click on the Static IP address option in Dial-in, then put the address ip of the hadoop-client.

You can add a new computer in AD manually, but we don't recommend that. Try to use the realm join

Step 3: Config AD/Krb, DNS server to well integrate hadoop-client¶

To make the debian server (hadoop-client) fqdn recognizable and reachable by the other servers in the domain, we need to configure the dns server

3.1. Check the dns entries in windows server¶

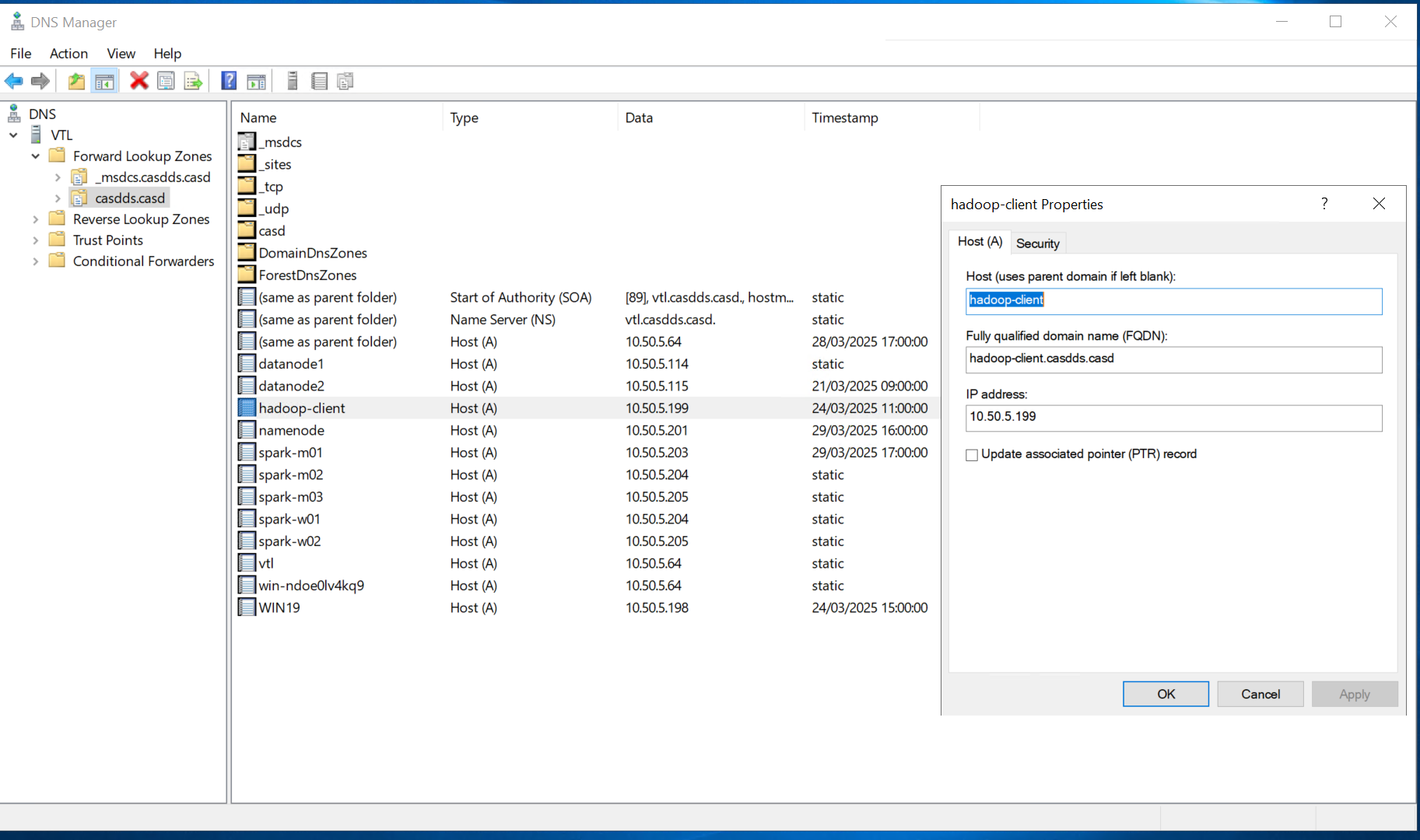

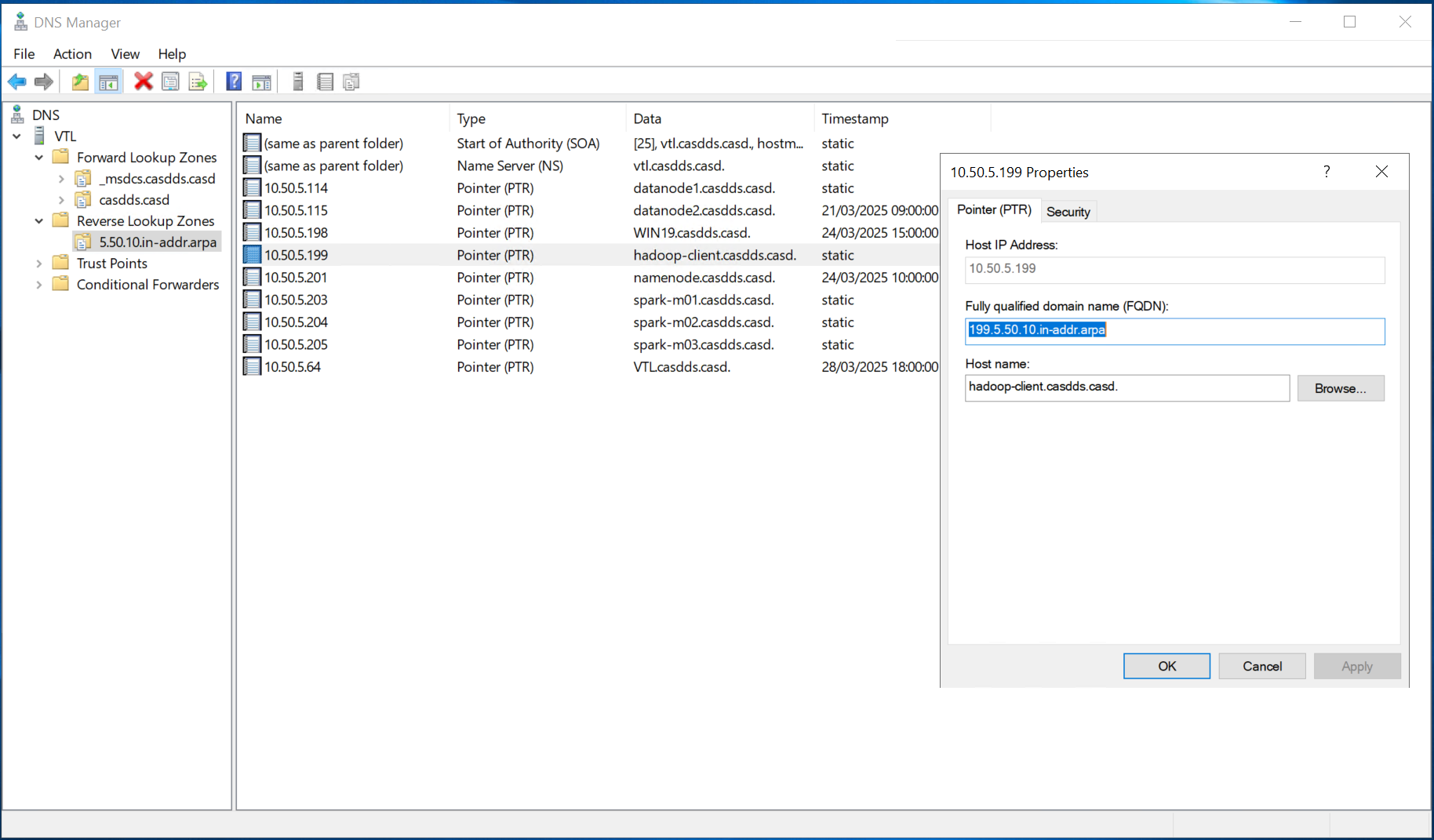

Open the dns manager in the Windows server (auth.casdds.casd). Check the forward lookup and reverse lookup. You need to make sure the hostname, fqdn and ip address are correct. The two below figures are examples of the hadoop-client config.

Normally, these entries are created automatically by the realm join command. If they are not created correcly, you need to create them manually.

3.2. Check the SPN (Service Principal Name) in Windows server¶

Every registered computer in the domain should have a valid SPN (Service Principal Name). You can check the name by using the below command. You can open a powershell prompt in the AD/krb server.

setspn -L hadoop-client

# expected output
Registered ServicePrincipalNames for CN=HADOOP-CLIENT,CN=Computers,DC=casdds,DC=casd:
        RestrictedKrbHost/hadoop-client.casdds.casd
        RestrictedKrbHost/HADOOP-CLIENT
        host/hadoop-client.casdds.casd
        host/HADOOP-CLIENT

If you don't see any outputs, you can create a SPN (Service Principal Name) manually. Below is the command to do so.

# create a new spn and link it to the hadoop-client(AD account)
# The -S option adds an SPN only if it does not already exist (avoids duplicates).
setspn -S host/hadoop-client.casdds.casd hadoop-client

# generate a keytab for principal  host/hadoop-client.casdds.casd@CASDDS.CASD
ktpass -princ host/hadoop-client.casdds.casd@CASDDS.CASD -mapuser HADOOP-CLIENT$ -pass * -ptype KRB5_NT_PRINCIPAL -crypto AES256-SHA1 -out hadoop-client.keytab

Below lines are the explanation of the commands: - The ktpass command can generate a keytab file for Kerberos authentication. - -princ host/hadoop-client.casdds.casd@CASDDS.CASD defines the Kerberos principal name. - -mapuser HADOOP-CLIENT$ maps the Kerberos principal to the account (HADOOP-CLIENT) in Active Directory (AD). The $ indicates it's a computer account (not a user). - -crypto AES256-SHA1 specifies that only the AES256-SHA1 crypto algo is supported. You can replace it with ALL to specify all available cryptographic algorithms should be supported for encryption. - -ptype KRB5_NT_PRINCIPAL specifies the principal type as KRB5_NT_PRINCIPAL, which is used for standard Kerberos authentication(for services, use KRB5_NT_SRV_HST). - -pass * prompts the user to enter the password manually. Typically, computer accounts in AD have auto-generated passwords. - -out hadoop-client.keytab saves the keytab file, which will be used by the linux server(hadoop-client) for authentication.

The hadoop-client.keytab file is copied to the hadoop-client, so it can use this keytab for Kerberos authentication. hadoop-client can use the kerberos ticket to prove the identity of hadoop-client.

After coping the hadoop-client.keytab file to hadoop-client, you can use the below command to check keytab contents:

klist -k /tmp/hadoop-client.keytab

# you should see outputs like
"host/hadoop-client.casdds.casd"

3.3 Rename the keytab file in linux(hadoop-client)¶

In linux, many Kerberos-aware applications (e.g. kinit, Hadoop, etc.) expect the keytab file to be named krb5.keytab and located in /etc/ by default. We can use the below commands

sudo mv hadoop-client.keytab /etc/krb5.keytab

# Ensures only root can read it (for security).
sudo chmod 600 /etc/krb5.keytab

3.4 Leave and rejoin the realm¶

If there are errors that you can't resolve, you can always leave the realm and rejoin

sudo realm leave CASDDS.CASD

sudo realm join --user=Administrateur CASDDS.CASD

3.5. Create a service account in AD for sssd daemon.¶

As we explained before, the linux server relies on sssd daemon to get the user id and groups from the AD server. This requires sssd to have an account that allows him to access AD.

You need to create a service account sssd in Active Directory manager. Then use the below command to create a principal and the keytab file.

ktpass -princ sssd@CASDDS.CASD -mapuser sssd -crypto AES256-SHA1 -ptype KRB5_NT_PRINCIPAL -pass * -out sssd.keytab

Copie the keytab file to the debian server(hadoop-client):

scp sssd.keytab sssd@debian.casdds.casd:/tmp/

Put the keytab file in /etc

sudo cp /tmp/sssd.keytab /etc/
# need to check the acl of the file, 644 is too open for me
sudo chmod 644 /etc/sssd.keytab
sudo chown root:root /etc/sssd.keytab

Step 4 : Configuration of SSSD, PAM and Kerberos¶

We will follow the below order to configure each component: - kerberos client: configure krb client to connect to the target krb Realm - sshd/pam: configure sshd server to use pam as authentication backend - pam/sssd: configure pam to use sssd as backend - sssd/krb: configure sssd to use krb plugin

4.1 Configure kerberos client in debian(hadoop-client) server¶

# install the required package
sudo apt install krb5-user

# edit the config file `/etc/krb5.conf`
sudo vim /etc/krb5.conf

Put the below content in the file /etc/krb5.conf

 [libdefaults]
        default_realm = CASDDS.CASD

        default_tkt_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
        default_tgs_enctypes = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
        permitted_enctypes   = aes256-cts-hmac-sha1-96 aes128-cts-hmac-sha1-96
        kdc_timesync = 1
        ccache_type = 4
        forwardable = true
        # Fadoua said this must be removed from, otherwise the ticket will not be forwad to the target host
        # proxiable = true
        ticket_lifetime = 24h
        dns_lookup_realm = true
        dns_lookup_kdc = true
        dns_canonicalize_hostname = false
        rdns = false
         allow_weak_crypto = true


[realms]
        CASDDS.CASD = {
                kdc = 10.50.5.64
                admin_server = 10.50.5.64
        }
…..
[domain_realm]
….
        .casdds.casd = CASDDS.CASD
        casdds.casd = CASDDS.CASD

To check the krb client, use the below command

# ask a ticket kerberos
kinit host/hadoop-client.casdds.casd

# the short version should work if the keytab is in place, if not you can specify the path of keytab
kinit -kt /etc/krb5.keytab host/hadoop-client.casdds.casd

4.2. Configure sshd to use pam¶

We need to edit two files: - /etc/ssh/sshd_config (configuration for the ssh server) - /etc/ssh/ssh_config (configuration for the ssh client)

In /etc/ssh/sshd_config, enable the below lines

# disable other authentication methods
ChallengeResponseAuthentication no
PasswordAuthentication no

# use pam as authentication backend
UsePAM yes

# GSSAPI options for sshd server to accept GSSAPI, it's required for the server to accept krb ticket as
# credentials
#
GSSAPIAuthentication yes
# Cleans up the Kerberos credentials after the session.
GSSAPICleanupCredentials yes
# Ensures that the SSH client does not strictly check for a valid acceptor name in the Kerberos tickets.
GSSAPIStrictAcceptorCheck no
# Allows the exchange of Kerberos keys for stronger encryption.
GSSAPIKeyExchange yes


X11Forwarding yes

PrintMotd no


# Allow client to pass locale environment variables
AcceptEnv LANG LC_*

# override default of no subsystems
Subsystem       sftp    /usr/lib/openssh/sftp-server

You need to restart the sshd service to enable the new config

sudo systemctl restart sshd

In the /etc/ssh/ssh_config, you need to add the below line

   Host *
       GSSAPIAuthentication yes
       GSSAPIDelegateCredentials yes
       PasswordAuthentication no

For hadoop-client, the ssh_config is not required, because it defines the behaviour of the ssh client. It needs to be configured in the ssh client which wants to connect to the hadoop-client ssh server.

4.3 Configure pam¶

All the configuration files for pam are located in /etc/pam.d/. The below is the minimum config for the pam to use sssd daemon as authentication backend.

### /etc/pam.d/common-auth
sudo: unable to resolve host debian118: Name or service not known
auth      sufficient  pam_unix.so try_first_pass
auth      sufficient  pam_sss.so use_first_pass
auth      required    pam_deny.so

### /etc/pam.d/common-account
sudo: unable to resolve host debian118: Name or service not known
account   required    pam_unix.so
account   sufficient  pam_sss.so
account   required    pam_permit.so

### /etc/pam.d/common-password
sudo: unable to resolve host debian118: Name or service not known
password  sufficient  pam_unix.so
password  sufficient  pam_sss.so
password  required    pam_deny.so

### /etc/pam.d/common-session
sudo: unable to resolve host debian118: Name or service not known
session   required    pam_unix.so
session   optional    pam_sss.so
session   required    pam_mkhomedir.so skel=/etc/skel/ umask=0022

4.4 Configure sssd¶

Now we need to configure the sssd daemon. The main config file is in /etc/sssd/sssd.conf

[sssd]
services = nss, pam
domains = casdds.casd
config_file_version = 2

[nss]
homedir_substring = /home

[pam]

[domain/casdds.casd]
ldap_sasl_authid = sssd@CASDDS.CASD
krb5_keytab = /etc/sssd.keytab
default_shell = /bin/bash
krb5_store_password_if_offline = True
cache_credentials = True
krb5_realm = CASDDS.CASD
realmd_tags = manages-system joined-with-adcli
id_provider = ad
fallback_homedir = /home/%u@%d
ad_domain = casdds.casd
use_fully_qualified_names = False
ldap_id_mapping = True
access_provider = ad
ldap_group_nesting_level = 2

5.configure ssh client on Windows¶

In windows, there are many ssh clients: - MobaXterm: - tabby: https://tabby.sh/ - powershell+openssh - PuTTY

Below is the instruction on how to install and configure openssh via PowerShell

Add-WindowsCapability -Online -Name OpenSSH.Client~~~~0.0.1.0
Add-WindowsCapability -Online -Name OpenSSH.Server~~~~0.0.1.0
Start-Service sshd
Set-Service -Name sshd -StartupType 'Automatic'

In windows, all the configuration file for openssh is located in C:\ProgramData\ssh If you want to setup the config for ssh server, you can edit the file in C:\ProgramData\ssh\sshd_config.

To restart ssh service in windows

# start sshd service
Start-Service sshd

# restart sshd service
Restart-Service sshd

Configure ssh client

# open a notepad
notepad $env:USERPROFILE\.ssh\config

# add the below lines
# * means for all hosts
Host *
    GSSAPIAuthentication yes
    GSSAPIDelegateCredentials yes

You can also define the behaviors host by host, below is an example

Host hadoop-client
    HostName hadoop-client.casdds.casd
    User pengfei@casdds.casd
    Port 22
    GSSAPIAuthentication yes
    GSSAPIDelegateCredentials yes

Step 6 : Test the solution¶

In our scenario, the user follow the below steps: 1. first login to a Windows server, the first ticket kerberos is generated in the Windows server. 2. user ssh to hadoop-client with the ticket kerberos with option forward ticket 3. user try to access hdfs cluster with the forward kerberos ticket

Suppose you have an account user in AD with the privilege to connect to hadoop client \

6.1. Understand the ticket¶

In linux, you can ask a ticket and check the ticket with the below command

# ask a new ticket, you need to provide a password associated with the provided principal
kinit user@CASDDS.CASD

# check the ticket contents
klist -5fea

The option: - 5: Show only Kerberos 5 tickets (modern Kerberos version). - f: Show ticket flags (like FORWARDABLE, RENEWABLE, etc.). - e: Display encryption type used for the ticket. - a Show addresses associated with the ticket (if address-restriction of the ticket is activated).

You should see the below output as the ticket content

Ticket cache: FILE:/tmp/krb5cc_1000
Default principal: user@CASDDS.CASD

Valid starting       Expires              Service principal
03/31/25 10:00:00  03/31/25 20:00:00  krbtgt/CASDDS.CASD@CASDDS.CASD
        Flags: FRI
        Etype (skey, tkt): aes256-cts-hmac-sha1-96, aes256-cts-hmac-sha1-96
        Addresses: 192.168.1.100

A kerberos ticket has the below properites:

Ticket cache: Location of the ticket.
Default principal: Your Kerberos identity (user@EXAMPLE.COM).
Valid starting / Expires: Time range for which the ticket is valid.
Service principal: The Kerberos service this ticket is for. (krbtgt/CASDDS.CASD@CASDDS.CASD is a tgt issued by CASDDS.CASD the kdc server)
Flags (-f option): F = Forwardable (Can be forwarded to another machine). R = Renewable (Can be extended before expiration). I = Initial (Freshly obtained).
Encryption type (-e option): aes256-cts-hmac-sha1-96, means AES-256 encryption with SHA-1 HMAC.
Addresses (-a option): Shows the IP addresses associated with the ticket (if address-restricted).

You can ask ticket with special options:

# below command ask a Forwardable, Renewable for a 7 day validity
kinit -f -r 7d

Based on the kdc configuration, it may or may not generate the ticket.

6.2. Connexion SSH¶

From windows, if the server has joined the domain, windows will generate a kerberos ticket after user logon:

# check the user ticket
klist -5fea

# for windows ssh client
# -K active la délégation Kerberos
ssh -K user@debian.casdds.casd

# for linux ssh client
ssh -o GSSAPIDelegateCredentials=yes user@debian.casdds.casd

Appendix :¶

ACL for /etc/sssd/sssd.conf¶

The Permissions for /etc/sssd/sssd.conf must be 600 :

sudo chmod 600 /etc/sssd/sssd.conf
